Description

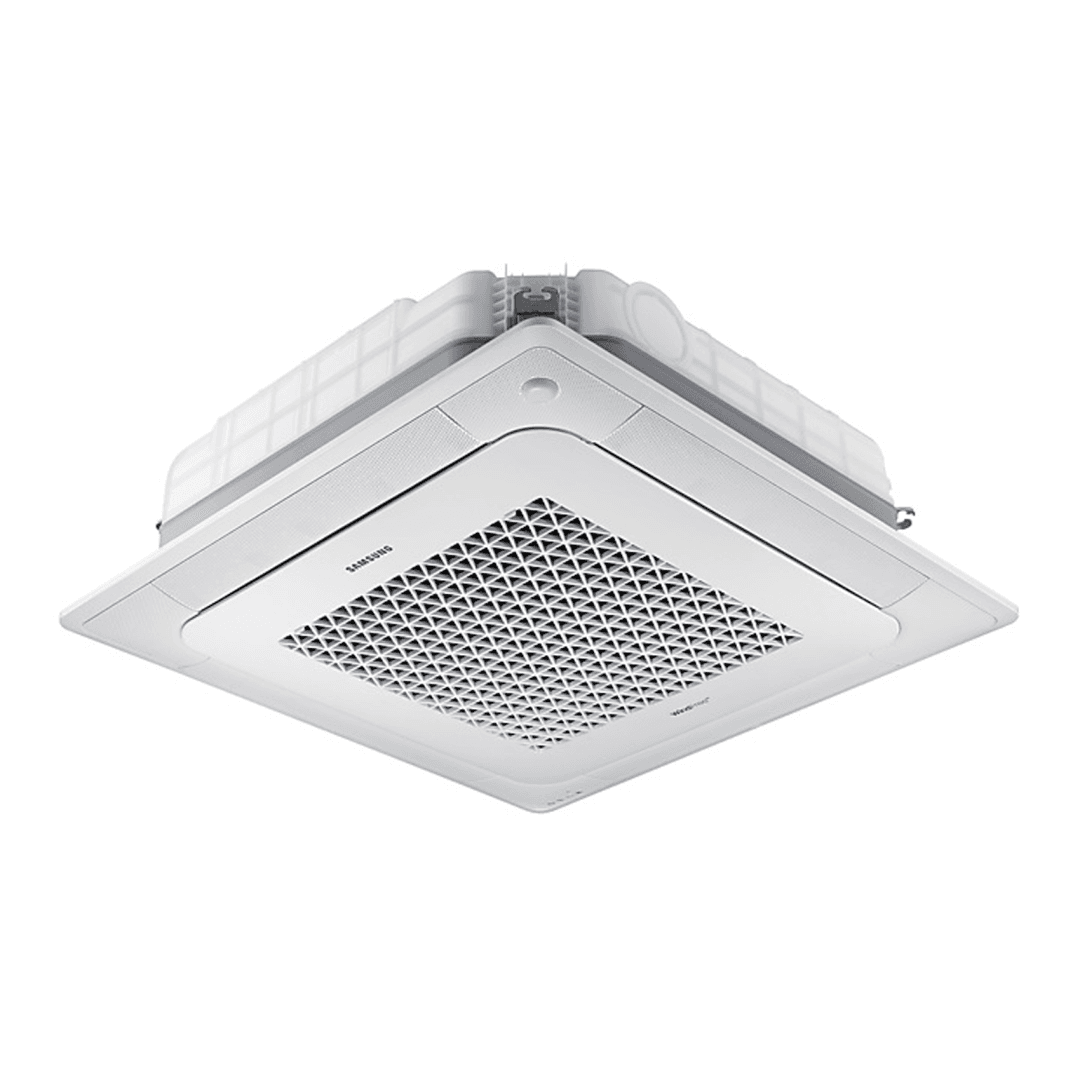

Samsung 5.2kW Cassette Inverter WindFree™ Air Conditioner (Model: AC052TN4DKC/EA)

Key Features

• Stay Cool Without Direct Wind: WindFree™: WindFree™ Cooling effectively maintains a comfortable level of coolness without the unpleasant feeling of cold wind. Cool air is gently dispersed through 15,672 micro air holes, so you won’t feel too hot or cold.

  • PC4SUFMAN(4way 600*600) : 8,976 micro hole, PC4NUFMAN(4way) : 15,672 micro hole

• Energy Saving with WindFree™ Cooling: WindFree™ Cooling allows efficient energy saving up to 55%.

  • Tested on Outdoor unit AC140MXADKH, Indoor unit AM140FN4DEH when running simultaneously. Individual result may vary depending on consumer usage.

• Wider Cooling Range: Big Blade: Big and optimized blades enable even wider cooling range.

  • Tested on Indoor unit AM140FN4DEH when running. Individual result may vary depending on consumer usage.

• Optimized Operation by MDS: Motion Detect Sensor: Motion Detect Sensor enables customized air flow and energy efficient operation.

Specifications

General

• Type: 5.2kW-1Φ-4Way

• Model Name (Indoor Unit): AC052TN4DKC/EA

• Model Name (Outdoor Unit): AC052TXADKC/EA

• Mode: COOLING ONLY

Capacity

• Cooling: 1.0 / 5.0 / 6.0 kW

Power Input (Nominal)

• Cooling 1): 0.33/1.41/2.1 kW

Current Input (Nominal)

• Cooling 1): 1.5/6.7/9.5 A

Power

• MCA: 21.5 A

• MFA: 25.0 A

Energy Efficiency

• EER (Nominal Cooling): 3.55

Piping Connections

• Liquid Pipe (Φ, mm): 6.35 mm

• Liquid Pipe (Φ, inch): 1/4″

• Gas Pipe (Φ, mm): 12.7 mm

• Gas Pipe (Φ, inch): 1/2″

• Installation Max. Length: 30 m

• Installation Max. Height: 20 m

Field Wiring

• Transmission Cable: 0.75↑

Refrigerant

• Type: R410A

• Control Method: EEV

• Factory Charging: 1.30 kg

Power Supply (Indoor Unit)

• : 1,2,220-240,50 [Φ, #, V, Hz]

Fan (Indoor Unit)

• Type: Turbo Fan

• Motor (Output): 65 W

• Number of Unit: 1 EA

• Air Flow Rate (High / Mid / Low): 16.9/15.9/14.9 CMM

Drain

• Drain Pipe (Φ,mm): VP25 (OD 32,ID 25)

Sound (Indoor Unit)

• Sound Pressure (High / Mid / Low): 35/33/31 dBA

External Dimension (Indoor Unit)

• Net Weight: 14.5 kg

• Shipping Weight: 17.5 kg

• Net Dimensions (WxHxD): 840 x 204 x 840 mm

• Shipping Dimensions (WxHxD): 898 x 275 x 898 mm

Panel Size

• Panel model: PC4NUFDAN

• Panel Net Weight: 6.3 kg

• Shipping Weight: 8.7 kg

• Net Dimensions (WxHxD): 950 x 48 x 950 mm

• Shipping Dimensions (WxHxD): 1010 x 117 x 1000 mm

Additional Accessories

• Drain Pump: Built in

• Drain Pump Max. Lifting Height/Displacement: 750 /24

Power Supply (Outdoor Unit)

• : 1,2,220-240,50 [Φ, #, V, Hz]

Compressor

• Type: Twin BLDC Rotary

• Model: UG9TK3150FE4

• Output: 1.42 kW

• Oil (Type): POE

• Oil (Initial Charge): 500 cc

Fan (Outdoor Unit)

• Air Flow Rate (Cooling): 43 CMM

Sound (Outdoor Unit)

• Sound Pressure (Cooling / Heating): 50 dBA

External Dimension (Outdoor Unit)

• Net Weight: 40.5 kg

• Shipping Weight: 43.5 kg

• Net Dimensions (WxHxD): 880 x 638 x 310 mm

• Shipping Dimensions (WxHxD): 1023 x 730 x 413 mm

Operating Temperature Range

• Cooling (℃): -15 ~ 50 ℃

Smart Features

• WiFi Kit: Yes

• App Connectivity: SmartThings App Support: Yes
