Description

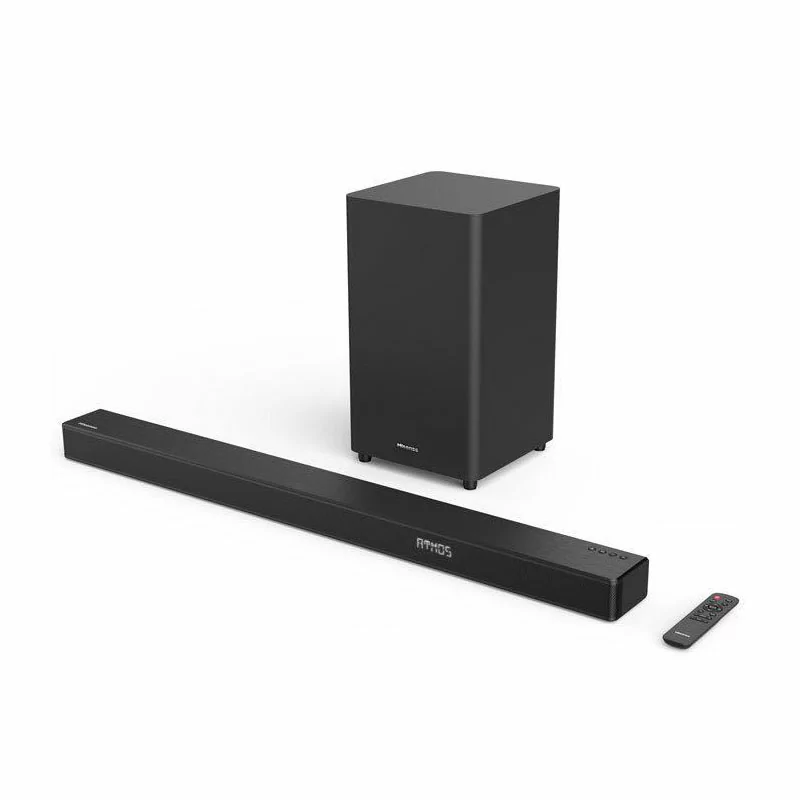

Immersive 3.1 Channel Soundbar System with Wireless Subwoofer & Dolby Atmos

Transform your home entertainment experience with this powerful 3.1 Channel Soundbar and Wireless Subwoofer system. Designed to deliver truly immersive audio, it features cutting-edge Dolby Atmos and Dolby Digital Plus decoding, bringing cinematic sound right into your living room. Experience sound that moves around you with breathtaking realism, adding depth and dimension to movies, music, and games.

With a total output power of 300W, including a dedicated 120W wireless subwoofer featuring an impressive 8-inch driver, you’ll feel deep, rich bass and enjoy clear, detailed audio across the frequency spectrum (40Hz-20KHz). The soundbar itself houses 6 speakers (3 pairs of full-range + tweeter) for crisp dialogue and dynamic mid-range sound. Tailor the audio to your preference with adjustable bass and treble levels and choose from optimized Sound Modes like Movie, Music, News, Night, and Sport.

Connectivity is seamless and versatile. Easily connect your TV using HDMI ARC for simplified control with your TV remote (CEC compatible). Utilize the two additional HDMI inputs for connecting consoles or Blu-ray players, plus Optical, Coaxial, and Aux (3.5mm) inputs for other devices. Stream your favorite playlists wirelessly via Bluetooth 4.2, or play audio files directly from a USB drive supporting formats like MP3, WMA, FLAC, and WAV.

Setup is straightforward with included HDMI and Optical cables, a full remote control with batteries, and a wall mount kit with guide. Smart features like Auto Power Off, Auto Wake Mode (via ARC), and an intuitive LED display enhance user convenience.

Upgrade your TV’s audio dramatically with this feature-packed Dolby Atmos soundbar system, delivering powerful, immersive sound and versatile connectivity options for all your entertainment needs.

Specification

• In The Box – Accessories: 3.5mm audio cable 1 PCS, AC power cord 2 PCS, Battery (AAA) 2 PCS, HDMI Cable 1 PCS, Operation Manual 1 PCS, Optical Cable 1 PCS, Quick Guide 1 PCS, Remote Controller 1 PCS, Wall Mount Guide 1 PCS, Wall Mount Kit 1 Set
• Remote Control Type: IR
• Remote Control: Battery AAA Battery

Control Keys (On Main Unit)

• Controls On Sound Bar (Front Panel): Input/Source, On/Standby, Volume +/-
• Controls On Subwoofer (Rear Panel): ID Set

Sound Enhancement

• Sound Mode: Movie, Music, News, Night, Sport
• Surround Mode: Support (ON / OFF)

Decoder

• Dolby Atmos: Yes
• Dolby THD: Yes
• Dolby Digital Plus: Yes
• Dolby Digital: Yes
• PCM: Yes
• Multich PCM: Yes
• Decoder Others: AAAVC (4+8K), AACW, ALAC, FLAC, MP3, WAV, WMA

Key Components

• Wireless to Subwoofer (5.8GHz): 2.4GHz RF

Sound Features

• Sound Mode: Movie, Music, News, Night, Sport

Terminals

• Soundbar (HDMI Input): 2
• Soundbar (HDMI Output – ARC): Yes
• Soundbar (Optical input): Yes
• Soundbar (Coaxial input): Yes
• Soundbar (AUX In (3.5mm)): Yes
• Soundbar (USB – Type A): 1, USB Audio and FW update
• Power supply BOX (Power Supply Socket AC): Yes

Functions

• HDMI Input: 2
• HDMI ARC: 1
• BT Version: 4.2
• Optical Input: Yes
• Coaxial Input: Yes
• Aux Input: 3.5mm Phone Jack
• Auto Power Off: Yes
• Wall Mountable: Yes
• USB port for Service (FW update): Share USB Type A
• Auto Wake Mode (Enter Mode Method): “Source” & “Vol+” (On Soundbar)
• Auto Wake Mode (Support Input): ARC (Not for BT, AUX, Coaxial, Optical, USB
• Bass Level Adjustment: Yes
• Treble Level Adjustment: Yes
• Dimmer Adjustment: Yes
• Compatible with TV Remote Control Code: CEC
• Shop mode: “Source” & “Vol-” (On Soundbar)

Display

• Soundbar (Main Display): LED Display
• Soundbar (Standby LED): Standby LED
• Subwoofer (Standby LED): Blue LED

Amplifier

• Amp Type: 3.1CH
• Rated Output (Sound Bar): 180W, 30W x 6 (@10%THD)
• Rated Output Power (Subwoofer): 120W (@10%THD)
• Rated Output Power (Total); 300W
• Sound Bar (Frequency Response): 120Hz-20KHz
• Speaker System: (1 Full Range + 1 Tweeter) x 3, Total 6 Speakers
• Woofer: Speaker Size: 48 x 90mm
• Tweeter: Speaker Size 1.5″
• Subwoofer (Frequency Response): 40Hz-120Hz
• Subwoofer (Type): Woofer
• Subwoofer (Size): 8″
• C. Max SPL:109dBA

Power Supply

• Voltage: AC ~ 100-240V
• Frequency: 50-60Hz
• Phase: AC Input
• Power Consumption (Sound Bar): 30W
• Power Consumption (Subwoofer): 25W
• Power Consumption (Stand-by): <0.5W

Audio Accessories

• Cable: 3.5mm line in cable: Yes
• Remote control: Yes
• Battery for remote control: AAA Battery x 2
• HDMI Input: 2

Specifications

• Gross Weight (Kg): 10.6 kg
• Sound Bar (Net weight (kg)): 3 kg
• Sound Bar (Dimensions (WxHxD) mm): 980 x 62 x 90
• Gross Dimension (W x H x D): 1090 x 365 x 270
• Subwoofer (Net weight (kg)): 5.5 kg
• Subwoofer (Dimensions (WxHxD) mm): 240 x 420 x 240
