Description

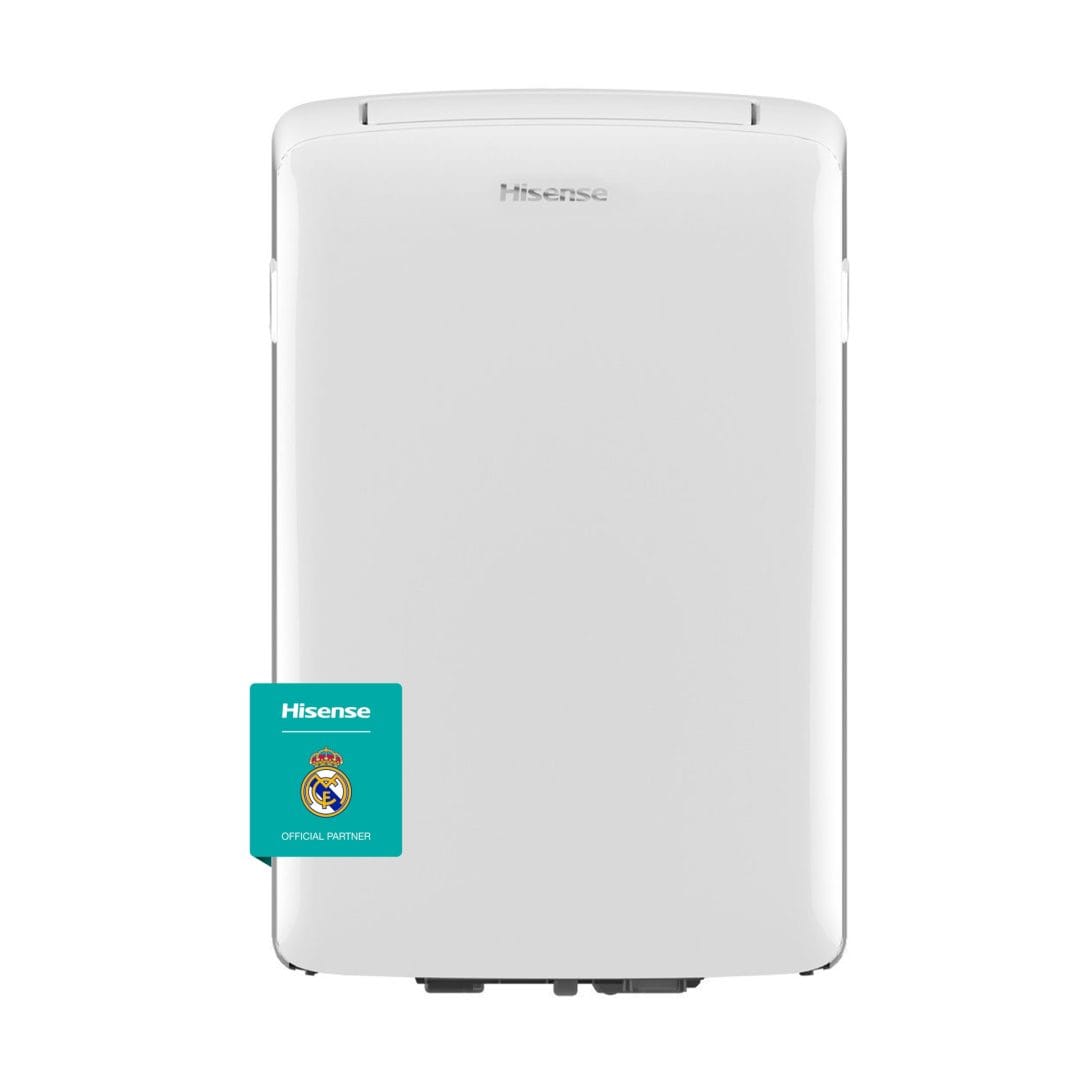

Portable air condition. Faster and stronger cooling capacity .Low noise and energy saving. Keeps you cool and comfortable on hot summer days. The design makes it suitable for all types of homes or offices

USER-FRIENDLY CONTROL AND DISPLAY

The user-friendly control and display makes it easy to operate the device.

AUTOMATIC

The bertical auto-swing improves the distribution of cooling, making you feel more comfortable.

INDEPENDENT DEHUMIDIFIER

Say goodbye to wet weather with the independent dehumidifier which extracts moisture from the air.

SELF-EVAPORATIVE MOVEMENT SYSTEM

The dirt strip evaporator quickly disintegrates dust and dirt through the process of internal frosting and then flushes the evaporator to clean the system.

SELF-DIAGNOSIS & AUTO PROTECTION

With a real-time self-diagnosis monitoring system it can immidiately diagnose itself in the event of a malfunction, displaying an error code. Additionally, with Auto protection technology, our ACs can initiate emergency power downs when close to a system overload.

Specifications

• Manufacture Model: AP-12HR4SEJS00
• Type Of AC: Heat pump

• Cooling Capacity: 3100
• Heating Capacity: 2640
• Power Input-Cooling: 1000
• Power Input-Heating: 942
• EER: 3.1
• COP: 2.8
• Air Circulation: 290
• Compressor: MODEL: ASN93V11UDZ1, BRAND: GMCC
• Refrigerant: R410A
• Refrigerant volumn: 490
• Unit Noise Level: 52

• Voltage, Frequency, Phase: 220-240V~,50Hz,1P
• Rated Current Cooling (A): 5
• Rated Current Heating (A): 4.7
• LRA: 19.2

• Expansion Device: Flow restrictor
• Evaporator: Copper tube and Aluminum Fin
• Condenser: Copper tube and Aluminum Fin

• Unit Control type: Electronic
• Fan Control: Button
• Thermostat Control: Button
• Sleep Mode: Yes
• Dry Mode (auto speed only): Yes
• Water Full Indicator: Yes
• Auto Cool (auto fan in cooling): Yes(on the controller)
• Smart Mode (remote access): Yes(on the controller)
• Rapid Cool(Jet) Mode (lowest temp & high speed) – Remote only: Yes(on the controller)
• Fan Only: Yes – 3 Speed
• Anion: NO
• Cooling Speed Selections: 3
• Timer- (24 Hr On/Off): Yes- (24 Hr on/off – 10 minutes Increments up to 24 Hrs)
• Clock: on the remote controller
• Air Swing (Motorized – Upward & Downward Motion): Yes
• Auto-Restart: Yes
• Room Temperature Display Units (F or C) factory default: Yes
• Fahrenheit to Celsius function: Yes
• Vent System: Single Duct

• Display Type: LED

• Fin type (code):hydrophilic aluminium

• AC Condenser: Copper tube and Aluminum Fin
• Outdoor coil: –
• Fin type (code): hydrophilic aluminium

• Net Dimensions WxHxD (mm): 430*695*325
• Packing Dimensions WxHxD (mm): 480*880*380

• Net Weight: 27
• Shipping Weight: 32

• Removable Filter: Yes
• Washable PP filter: Yes
• HEPA Filter: NO
• stack limit: 3
• Loading Capacity (40′ HC Container): 447
